Erosion Control – Runoff Control – Sediment Control

Erosion Control Blankets

S32 8 BB small

Details

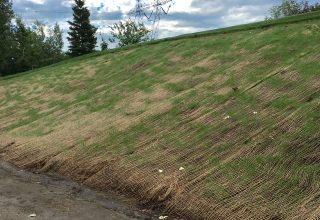

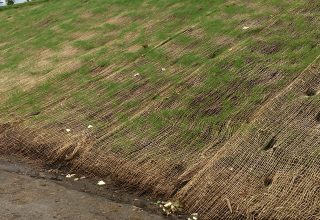

Erosion Control Blankets are a short-term double net and fiber erosion control blanket designed for use on moderate slope and channel applications requiring erosion control for 1-5 years depending fiber material (Straw, Straw/Coconut or Coconut), moisture, light, and environmental conditions.

Data Sheets

100% Biodegradable Data Sheets

Erosion Control Blanket



Stapler Gun for easy installation

Rifle M100 Staple Driver

Turf Reinforcement Mats

IMG_3375

Details

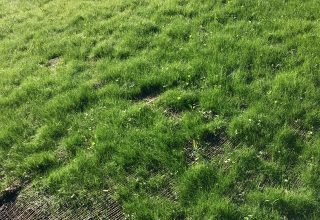

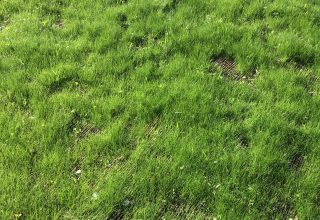

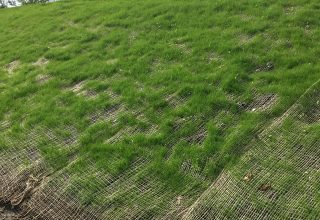

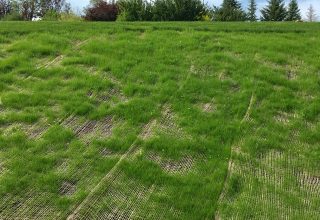

Turf Reinforcement Mats are designed for critical slope and channel applications requiring permanent erosion control and turf reinforcement. Mats are supplied with varying fiber fill material including Straw/Polypropylene, Coconut/Polypropylene or 100% Polypropylene.

Data Sheets




Fiber Rolls & Sediment Logs (Wattles)

sediment-control-logs

Details

Our fiber rolls are 100% biodegradable field constructed sediment filtration system. The Bio rolls,  are manufactured from either 100% Agricultural Straw or a Straw/Coconut fiber blend and stitched with cotton thread between two leno woven biodegradable jute nets.

Straw wattles are made from photo degradable plastic netting and filled with straw or hay. Straw wattles are semi-permeable barriers used to detain surface runoff long enough to reduce flow velocity and promote infiltration. Their main purpose is to break up slope length. Also available in 100% Biodegradable Logs.

Data Sheets




Silt Fence



AT Spec –  Roadbuilder Silt Fence

*  2m spacing between Stakes



Contractor Grade Silt Fence

* 3m spacing between Stakes

Silt Fencing Installed

Details

Silt fences are often temporary sediment control device used on construction sites, best used in combination with other erosion control products. Silt fences are widely used on construction sites due to their low cost and simple design to retain sediment in place where soil is being disturbed by construction processes.

Typical fences consists of geotextile stretched between 2″ x 2″ wood stakes or metal T-posts. The stakes are installed on the downhill side of the fence, and the bottom edge of the fabric is trenched into the soil and back filled on the uphill side. The design/placement of the silt fence should create a pooling of runoff, which then allows sedimentation to occur.

The fence is not designed to concentrate or channel storm water. The fence is installed on a site before soil disturbance begins, and is placed down-slope from the disturbance area. Custom logo silt fence available with minimum order.

Data Sheets

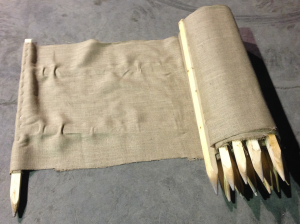

Biodegradable Silt Fence

100% Biodegradable tight woven natural jute textile



Antiwash GeoJute

Closeup of Geotextile Fabric

geo_jute1

Details

Antiwash GeoJute and GeoJute Plus products can bring soil erosion to a standstill. In applications such as reseeding & embankment stabilization, these proven and tested materials have become an integral part of soil projects all around the globe. These fabrics provide solutions that work both in the long term and the short term, providing exceptionally quick re-vegetation capability.

Data Sheets

Coir 700 / 900 Matting

Dekowe-700

Details

Dekowe 700 / Coir 700 products can bring soil erosion to a standstill. In applications such as reseeding, embankment stabilization and coastline reinforcement, these proven and tested materials have become an integral part of soil projects all around the globe. These fabrics provide solutions that work both in the long term and the short term.

Data Sheets

Coir-700

Coir-900







Re-vegetation Matrix

Erosion-control-geomat-Tenax-Multimat-900x1200

Details

Polypropylene and polyethylene materials used to aid in erosion control as well as the development of vegetation (Multi Mat 100) and preservation of vegetation  (Grass protection).

Multimat is about 20mm thick matrix that can be as part of winter greens protection on golf courses  to prevent freeze thaw cycle.

Data Sheets

IMG_3378

Enviro-Ridge

enviroridge


Details

Enviro-Ridge is an improved, patented, low profile lightweight, flexible and permeable plastic check dam for sediment control in ditch channels. Enviro-Ridge reduces water velocity by distributing water over a wider area of the ditch bottom, facilitating sedimentation and re-vegetation. By dissipating energy and reducing flow velocity, Enviro-Ridge causes sediment to settle near the up-slope side of each berm. In addition, its triangular configuration provides a protective shelter for newly emerging vegetation.



Data Sheets
